6080 Z LT GX

Nu Metal

180mm Rear / 190mm Front Travel, Mullet 29”/27.5” Wheels
RockShox ZEB Ultimate / Super Deluxe Ultimate Suspension
SRAM GX Drivetrain, Code RSC Brakes

Regular priceUSD 6,999.00
USD /
Tax included.

SKU: 30003496
Size

6080 Z LT GX

Parts & Accessories

  • Shipped to your local bike shop
  • FAQ
The 6080 Z GX is your sidekick in the search for hero lines. A robust alloy frame with 180mm of ultra-composed suspension gives you the confidence to drop into trouble. Assistance from the powerful motor and high-capacity battery gives you the ability to fly back to the top again. With top-of-the-line RockShox suspension, super powerful SRAM Code RSC brakes with 220mm front rotors and tried and tested DT Swiss wheels, nothing can get in your way.

Technology

Technical Details

Frameset

Frame:
SCOR 6080 Z Alloy Frame | Lower-Link Driven Instant Center Linkage | 180 mm Rear Wheel Travel | 29 / 27.5" Mullet | Boost 148 | SRAM UDH

Fork:
RockShox ZEB Ultimate RC2 | 190mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox ZEB Ultimate RC2 | 190mm Travel | 44mm Rake

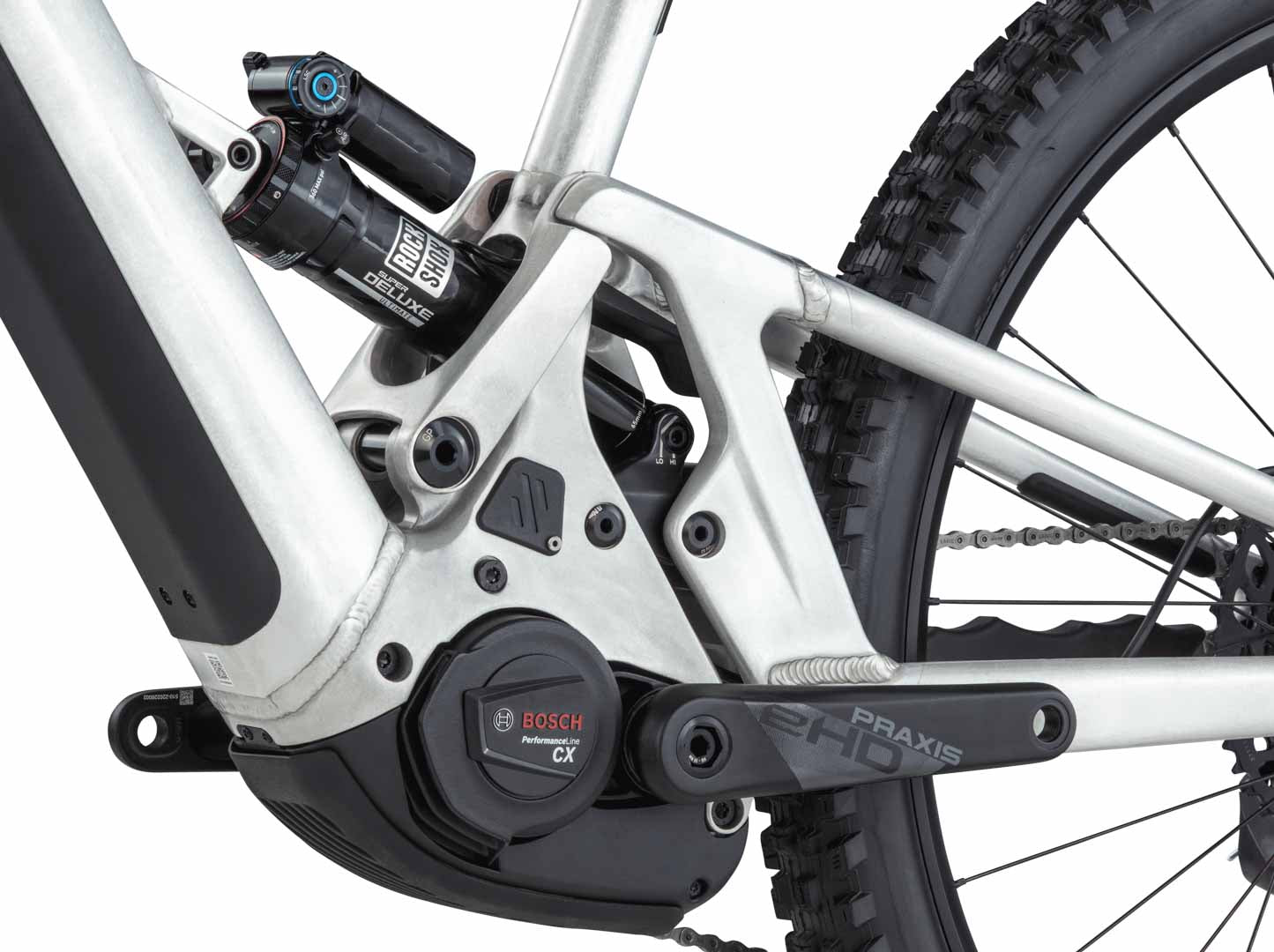

Rear Suspension:
RockShox Super Deluxe Ultimate RCT | 230 x 65mm

E-System

Drive Unit:

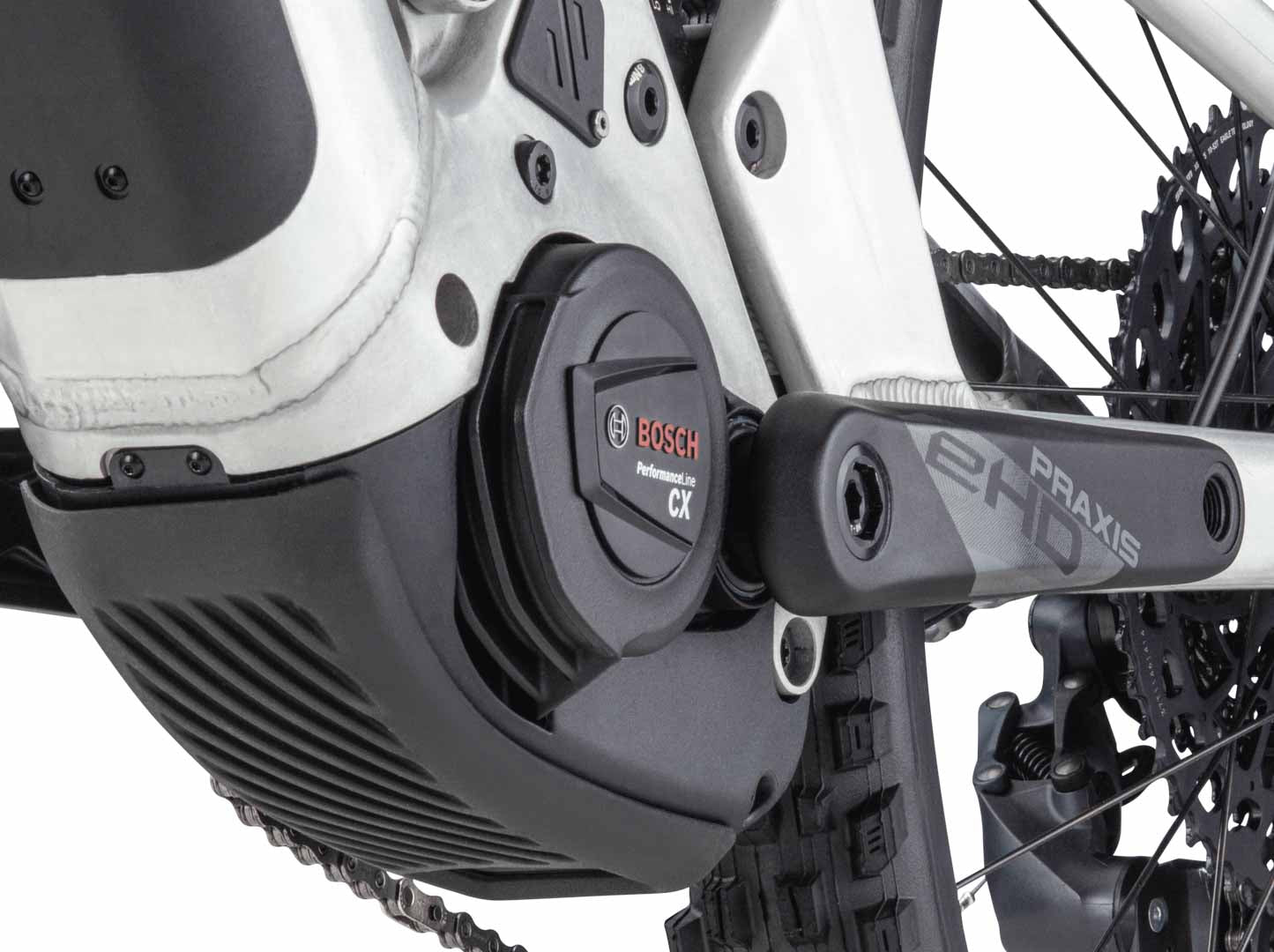

Bosch Performance CX Smart System

Battery Pack:
Bosch PowerTube | 750 Wh | Certified by Intertek Testing Services NA, Inc.

Display:
Bosch System Controller BRC3100

Drive Unit Control:
Bosch Mini Remote BRC3300

Charger:
Bosch 4A Charger

Cockpit

Stem:
Burgtec Enduro MK3 | 31.8mm Bar Bore | 35mm Length | 0° Angle

Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep

Grips:
Burgtec Bartender Pro

Seat

Seatpost:
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm Travel | Triggy Alpha lever

Saddle:
WTB Silverado Medium Cromoly SL

Brakes

Brake Levers / Calipers:
SRAM Code RSC

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
220 / 200mm

Wheels

Rims:
DT Swiss H 1900 SPLINE | 29 / 27.5" Mullet | 30mm Internal Width | Tubeless ready

Hubs (F/R):
DT Swiss 370 | Ratchet LN Freehub | Straightpull Spoke Interface | Boost spacing

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Assegai 27.5 x 2.5" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 5

System Weight Limit:
130kg

Size S M L XL
SCOR Size S-435 M-459 L-485 XL-515
Rider Height 155 - 170 165 - 180 175 - 190 185 - 200
Reach 435 459 485 515
Stack 622 625 635 650
BB Drop 16 16 16 16
Chainstay 435 435 435 435
Fork Length 606 606 606 606
Fork Rake 44 44 44 44
Front Center 798 821 848 876
Head Tube 93 96 107 124
Head Tube Angle 63 63 63 63
Seat Angle 76 76 76 76
Seat Tube 400 425 440 440
Standover Height 733 733 733 733
Top Tube 563 592 623 657
Wheelbase 1224 1247 1274 1302
