Panoramica tecnica
Telaio

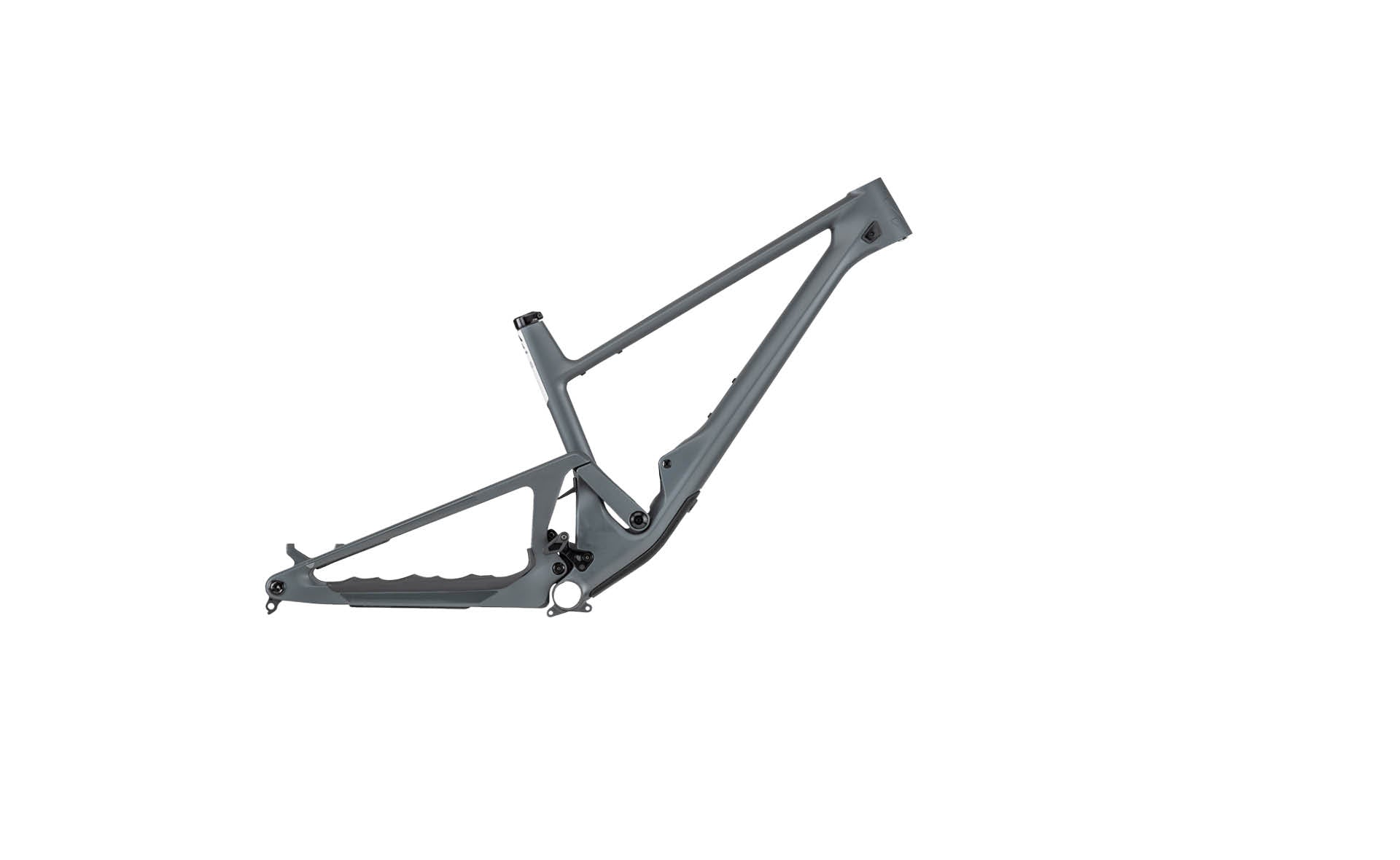

Telaio:
SCOR 4060 Full Carbon Frame | Lower-Link driven Instant Center Linkage | 140mm / 160mm Rear Wheel Travel | Fully Guided Internal Cable Routing | Stash Box | Boost 148 | SRAM Universal Derailleur Hanger | Lower ISCG 05 Mount / Chainguide
Sospensioni
Sospensione Posteriore:
ST Configuration: ROCKSHOX Super Deluxe Ultimate | Compression & Rebound Adjust | Open / Threshold / Lock | LT Configuration: Fox Float X2 Factory Series | Low / High Speed Compression & Rebound Adjust | 2 Position Adjust | Trunnion Mount
Informazioni aggiuntive
Sezione max coperture:
Width: 64mm | Diameter: 750mm
Classificazione ASTM:
Level 4
Limite di peso massimale :
120kg
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
| Reach | ||||
| Stack | ||||
| Bar Drop | ||||
| Bar Reach | ||||
| Bar Rise | ||||
| Bar Sweep | ||||
| Bar Width | ||||
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | ||||
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | ||||
| LT | BB Drop (SLACK) | 21 | 21 | 21 | 21 |
| LT | BB Drop (STEEP) | 18 | 18 | 18 | 18 |
| LT | BB Height (SLACK) | 348 | 348 | 348 | 348 |
| LT | BB Height (STEEP) | 351 | 351 | 351 | 351 |
| LT | Chainstay | 432 | 432 | 432 | 432 |
| LT | Fork Length | 580 | 580 | 580 | 580 |
| LT | Fork Rake | 44 | 44 | 44 | 44 |
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | 773 | 798 | 823 | 853 |
| LT | Front Center (STEEP) | 761 | 785 | 810 | 840 |
| LT | Head Tube | 87 | 99 | 115 | 127 |
| LT | HT Angle (SLACK) | 63.8 | 63.8 | 63.8 | 63.8 |
| LT | HT Angle (STEEP) | 65 | 65 | 65 | 65 |
| LT | Reach (SLACK) | 435 | 459 | 485 | 515 |
| LT | Reach (STEEP) | 431 | 456 | 481 | 511 |
| LT | Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
| LT | Seat Tube | 400 | 425 | 440 | 470 |
| LT | ST Angle @750mm Saddle Height (SLACK) | 76.5 | 76.5 | 76.5 | 76.5 |
| LT | ST Angle @750mm Saddle Height (STEEP) | 76 | 76 | 76 | 76 |
| LT | ST Angle Actual (SLACK) | 69 | 69 | 69 | 69 |
| LT | ST Angle Actual (STEEP) | 68.5 | 68.5 | 68.5 | 68.5 |
| LT | ST Angle Effective (SLACK) | 77.9 | 77.9 | 77.9 | 77.9 |
| LT | ST Angle Effective (STEEP) | 77.4 | 77.4 | 77.4 | 77.4 |
| LT | Stack (SLACK) | 601 | 612 | 626 | 637 |
| LT | Stack (STEEP) | 603 | 615 | 629 | 640 |
| LT | Stand Over Height (80 in Front of BB) | 759 | 771 | 775 | 791 |
| LT | Stand Over Height (Lowest Point) | 722 | 731 | 739 | 749 |
| LT | Top Tube (SLACK) | 562 | 590 | 621 | 655 |
| LT | Top Tube (STEEP) | 564 | 592 | 623 | 657 |
| LT | Wheelbase (SLACK) | 1206 | 1230 | 1255 | 1285 |
| LT | Wheelbase (STEEP) | 1193 | 1217 | 1242 | 1272 |
| ST | BB Drop (SLACK) | 31 | 31 | 31 | 31 |
| ST | BB Drop (STEEP) | 29 | 29 | 29 | 29 |
| ST | BB Height (STACK) | 338 | 338 | 338 | 338 |
| ST | BB Height (STEEP) | 340 | 340 | 340 | 340 |
| ST | Chainstay | 433 | 433 | 433 | 433 |
| ST | Fork Length | 560 | 560 | 560 | 560 |
| ST | Fork Rake | 44 | 44 | 44 | 44 |
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | 765 | 790 | 815 | 845 |
| ST | Front Center (STEEP) | 752 | 777 | 802 | 832 |
| ST | Head Tube | 87 | 99 | 115 | 127 |
| ST | HT Angle (SLACK) | 64.5 | 64.5 | 64.5 | 64.5 |
| ST | HT Angle (STEEP) | 65.5 | 65.5 | 65.5 | 65.5 |
| ST | Reach (SLACK) | 440 | 465 | 490 | 520 |
| ST | Reach (STEEP) | 436 | 461 | 485 | 516 |
| ST | Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
| ST | Seat Tube | 400 | 425 | 440 | 470 |
| ST | ST Angle @750mm Saddle Height (SLACK) | 77 | 77 | 77 | 77 |
| ST | ST Angle @750mm Saddle Height (STEEP) | 76.5 | 76.5 | 76.5 | 76.5 |
| ST | ST Angle Actual (SLACK) | 69.4 | 69.4 | 69.4 | 69.4 |
| ST | ST Angle Actual (STEEP) | 69 | 69 | 69 | 69 |
| ST | ST Angle Effective (SLACK) | 78.5 | 78.5 | 78.5 | 78.5 |
| ST | ST Angle Effective (STEEP) | 78 | 78 | 78 | 78 |
| ST | Stack (SLACK) | 597 | 608 | 622 | 633 |
| ST | Stack (STEEP) | 599 | 611 | 625 | 636 |
| ST | Stand Over Height (80 in Front of BB) | 752 | 764 | 768 | 784 |
| ST | Stand Over Height (Lowest Point) | 714 | 723 | 731 | 741 |
| ST | Top Tube (SLACK) | 560 | 589 | 620 | 654 |
| ST | Top Tube (STEEP) | 561 | 590 | 621 | 655 |
| ST | Wheelbase (SLACK) | 1198 | 1223 | 1248 | 1278 |
| ST | Wheelbase (STEEP) | 1185 | 1210 | 1235 | 1265 |
| Fork Length | ||||
| Fork Rake | ||||
| Frame Size | ||||
| Front Center | ||||
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | ||||
| Head Tube Angle | ||||
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | ||||
| Saddle Height Range | ||||
| Seat Angle | ||||
| Seat Tube | ||||
| Seatpost Drop | ||||
| Seatpost Length | ||||
| Seatpost Offset | ||||
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | ||||
| Stem Angle | ||||
| Stem Length | ||||
| Top Tube | ||||
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | ||||
| Wheelbase | ||||
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
